CMM Programming
CMM Programming Support
Request a quotation for part program development or revision.
Request a quotation
Program Development

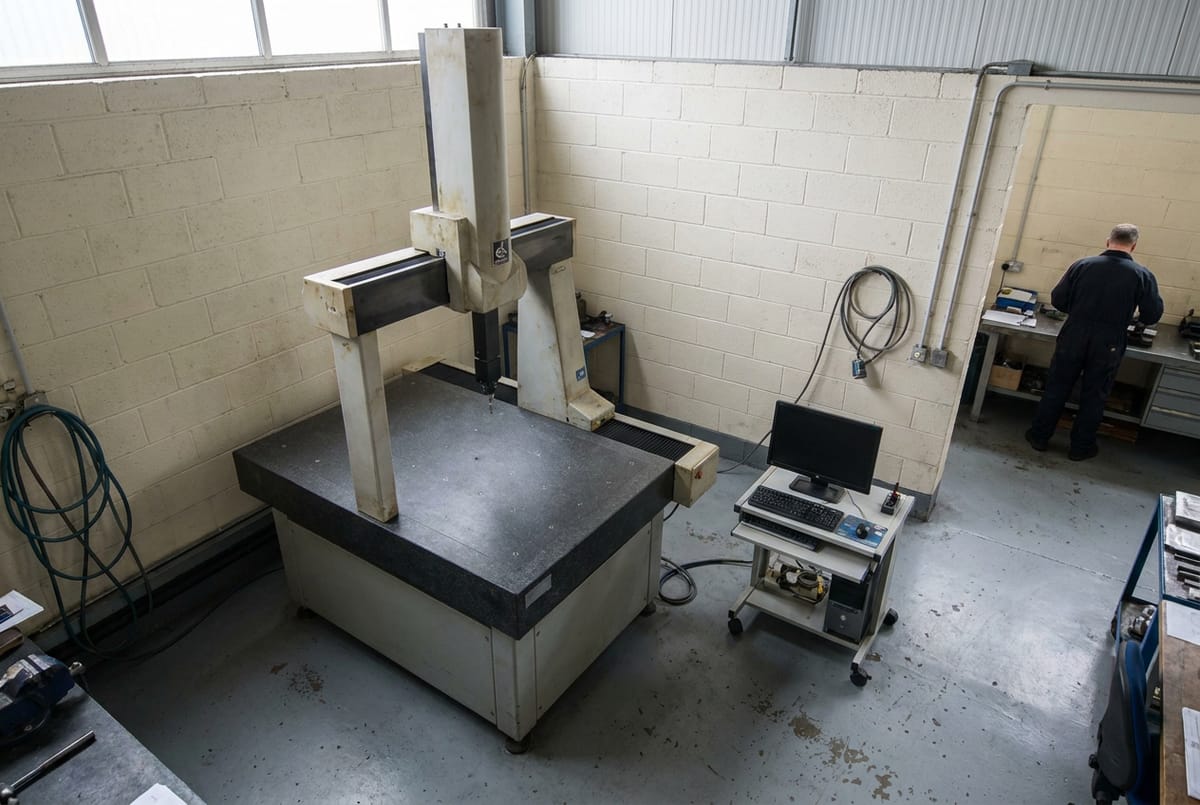

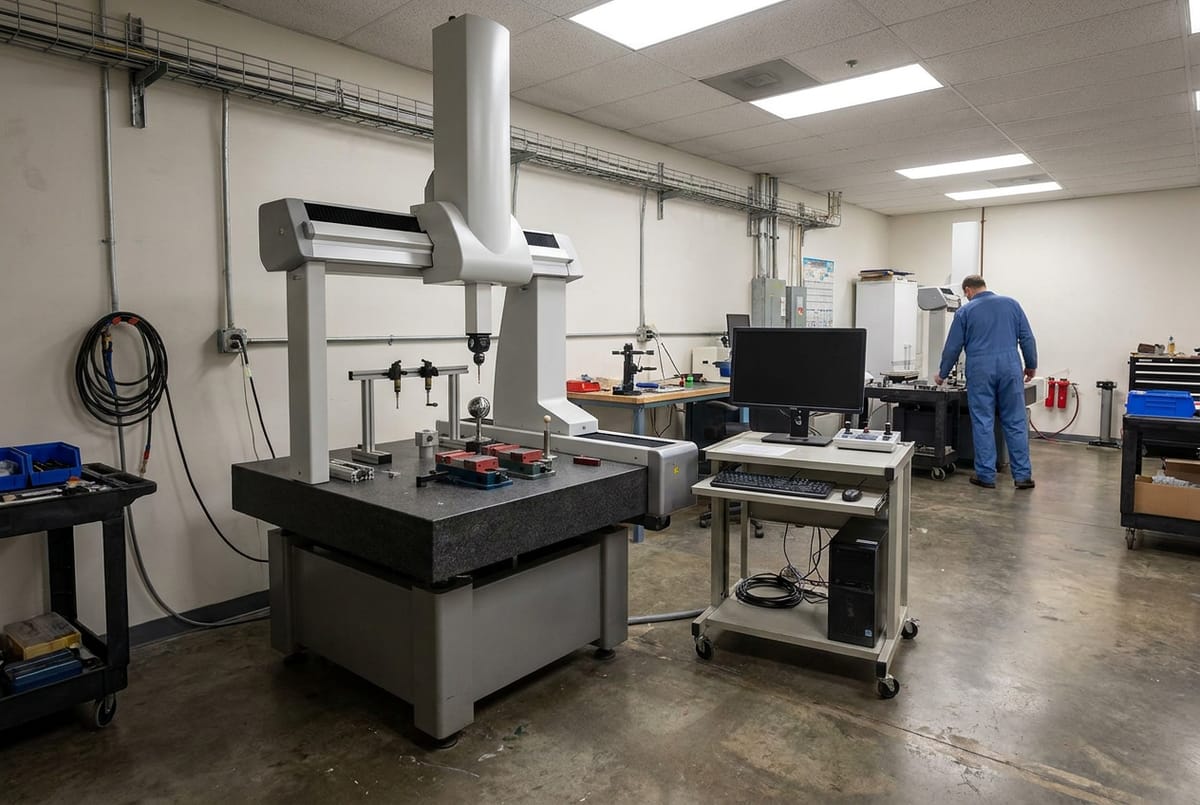

Part programs are developed from CAD models or physical samples for bridge, gantry and cantilever CMMs in current production use. Probe clearances, approach vectors and feature call-outs are built against the specific fixture used on the shop floor.
Existing programs are revised when fixturing, tolerancing or probe configuration changes require it. A program check is typically run after a controller or software upgrade, even when the part drawing has not changed.
What Is Included
Programming work is quoted against the part drawing, the GD&T callouts and the controller and software already installed on the machine.
- 01
New program build
Program written from CAD or a reference part, with probe path and clearance checks.
- 02
Program revision
Existing routines updated for a tolerance change, fixture swap or probe replacement.
- 03
First-article support
Program run against a first-off part with results reviewed before production release.
- 04
GD&T translation
Drawing callouts translated into measured features with explicit datums.
- 05
Fixture documentation
Fixture orientation and offsets recorded so the program can be rerun by another operator.
Programming Workflow
- 01
Drawing review
Tolerances, datums and feature callouts are reviewed before coding begins.
- 02
Probe planning
Approach angles and clearances are set to avoid collision and access faults.
- 03
Dry run
Program is run without a part present to confirm motion before measurement.
- 04
Validation
Output is checked against a known part or prior report before handover.
Why Oklahoma City CMM Calibration and Repair
- 01
Drawing-matched output
Reported features and datums follow the GD&T callouts on the current drawing revision.
- 02
Collision checked before run
Probe paths are dry-run to catch clearance faults before a part is measured.
- 03
Controller compatibility confirmed
Programs are built for the controller and software version already on the machine.
Coverage across Oklahoma and the Southern Plains
Service area coverage varies by equipment type and site location. Confirm availability for a specific address before scheduling.
Discuss CMM Programming Requirements
Send the drawing and controller details for a programming quotation.
